Purge Damper: Installation

Install in the reverse order of removal.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

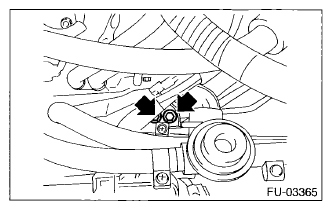

Fig 1: Locating Purge Damper To Purge Damper Bracket And Bolts

Courtesy of SUBARU OF AMERICA, INC.
