Rear Oxygen Sensor: Inspection
- Check that the rear oxygen sensor has no deformation, cracks or other damages.

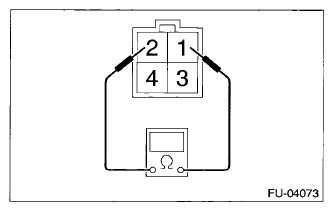

- Measure the resistance between rear oxygen sensor terminals.
Courtesy of SUBARU OF AMERICA, INC.
RESISTANCE REFERENCE CHART
| Terminal No. |
Standard |
| 1 and 2 |
5.6+0.8-0.6
Ω (when 20°C (68°F)) |
