Throttle Body: Installation

Install in the reverse order of removal.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

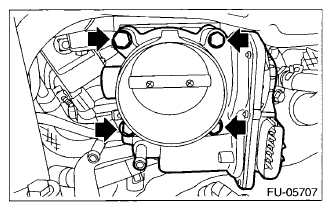

Fig 1: Locating Throttle Body From Intake Manifold Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

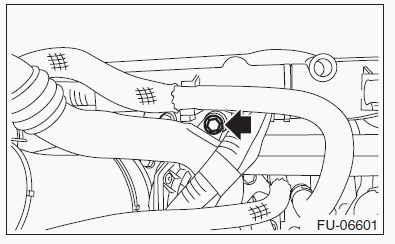

Fig 2: Identifying PCV Pipe Assembly Bolts And Intake Duct

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Identifying Air By-Pass Pipe Bolts To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.
