Tumble Generator Valve Assembly: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Remove the collector cover.
Disconnect the ground cable from battery.

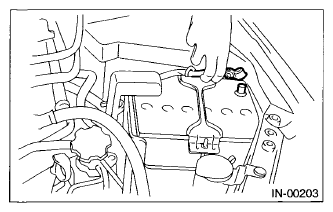

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Disconnect the connector from the tumble generator valve assembly.

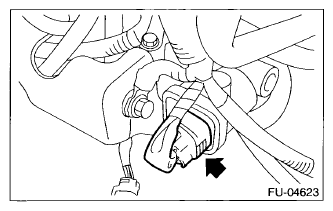

Fig 2: Locating Tumble Generator Valve Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector. < Ref. to REMOVAL , Fuel Injector. >
Remove the tumble generator valve assembly from the intake manifold.

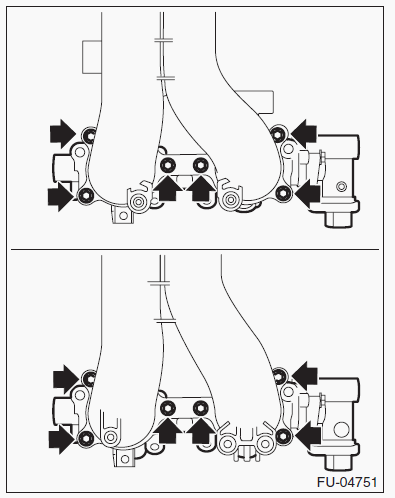

Fig 3: Locating Bolts And Tumble Generator Valve Assembly From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
