General Scan Tool
- Check that no DTC remains after clearing memory. < refer to CLEAR MEMORY MODE . >
- Warm up the engine.

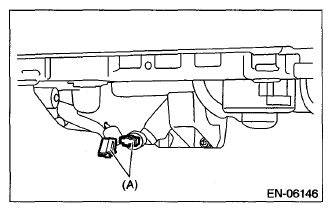

- Connect the delivery (test) mode connector (A) located under the glove box.

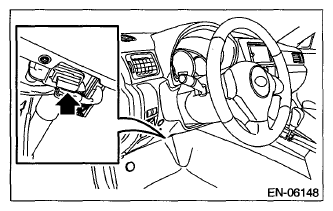

- Connect the general scan tool to data link connector located in the lower portion of the instrument panel (on the driver's side).CAUTION: Do not connect the scan tools except for Subaru Select Monitor and general scan tool.
- Start the engine.NOTE:
- Ensure the selector lever is placed in the "P" range before starting. (AT model)
- Depress the clutch pedal when starting engine. (MT model)
- Turn the neutral position switch to ON using select lever or shift lever.
- Depress the brake pedal to turn the brake switch ON. (AT model)
- Keep the engine speed in 2, 500 - 3, 000 rpm range for 40 seconds.
- Place the select lever or shift lever in D position (AT model) or 1st gear (MT model) and drive the vehicle at 5 to 10 km/h (3 to 6 MPH).NOTE:
- For AWD model, release the parking brake.
- The speed difference between front and rear wheels may light the ABS warning light, but this indicates no malfunctions. When engine control system diagnosis is finished, perform the VDC memory clearance procedure of self-diagnosis function. < refer to CLEAR MEMORY MODE . >
- Using the general scan tool, check for DTC and record the result(s).NOTE:
- For detailed operation procedures, refer to the general scan tool operation manual.
- For details concerning DTC, refer to "List of Diagnostic Trouble Code (DTC)".
NOTE:
< refer to
LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
