System Operation Check Mode: Operation: Notes

  1. Prepare the Subaru Select Monitor kit. < refer to PREPARATION TOOL , General Description >

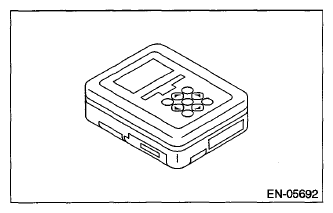

    Fig 1: Identifying Subaru Select Monitor Kit
    G07670228Courtesy of SUBARU OF AMERICA, INC.
  2. Prepare PC with Subaru Select Monitor installed.
  3. Connect the USB cable to SDI (Subaru Diagnosis Interface) and USB port on the personal computer (dedicated port for the Subaru Select Monitor).
    NOTE: The dedicated port for the Subaru Select Monitor means the USB port which was used to install the Subaru Select Monitor.
  4. Connect the diagnosis cable to SDI.
  5. Connect SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
    CAUTION: Do not connect the scan tools except for Subaru Select Monitor and general scan tool.

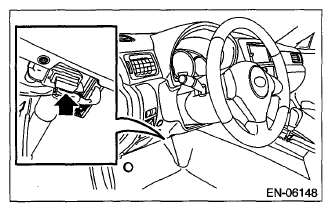

    Fig 2: Locating Data Link Connector
    G07670229Courtesy of SUBARU OF AMERICA, INC.
  6. Start the PC.
  7. Turn the ignition switch to ON (engine OFF) and run the "PC application for Subaru Select Monitor".
  8. On << Main Menu >> display, select {Each System Check}.
  9. On << System Selection Menu >> display, select {Engine Control System}.
  10. Click the [OK] button after the information of engine type has been displayed.
  11. On << Engine Diagnosis >> display, select {System Operation Check Mode}.
  12. The following items are displayed on the monitor.
    DISPLAY CHART

    Display
    Actuator ON/OFF Operation
    Immobilizer System
    Fuel Pump Control
    Fixed Idle Ignition Timing
    Idle Speed Control
    Injector Control
    EGR Valve Control
