Service Brake
- Move to the pull-up direction with the force of 10 N (1 kgf, 2 lbf) or less and check the free play.

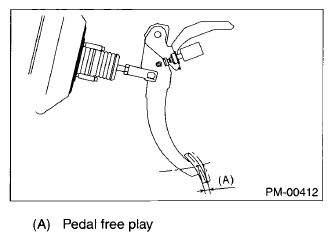

Brake pedal play
0.5 - 2.0 mm (0.02 - 0.08 in)
- If the free play is out of specifications above, adjust the brake pedal. < Ref. to INSPECTION , Brake Pedal. >
- Check the pedal stroke.

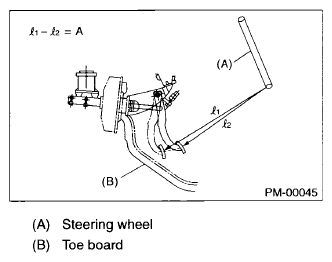

While the engine is idling, depress the brake pedal with a 500 N (51 kgf, 112 lbf) load and measure the distance between the brake pedal and steering wheel. With the brake pedal released, measure the distance between pedal and steering wheel again. The difference between the two measured values must be the specified value or less. If the measured value is specification or more, there is possibility of entering air in hydraulic unit.
Brake pedal stroke A:
95 mm (3.74 in)/500 N (51 kgf, 112 lbf) or less
- Check to see if air is in the hydraulic brake line by the feel of pedal operation. If air appears to exist in the line, bleed it from the system.
- Check for even operation of all brakes, using a brake tester or by driving the vehicle for a short distance on a straight road.
