Inspection And Adjustment

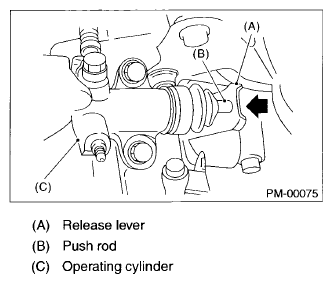

- Push the release lever to retract the push rod of the operating cylinder and check if the fluid level in the clutch reservoir tank rises.
Courtesy of SUBARU OF AMERICA, INC.
- If the fluid level rises, pedal free play is correct.
- If the fluid level does not rise, or the push rod cannot be retracted, adjust the clutch pedal. < Ref. to
CLUTCH PEDAL
. >

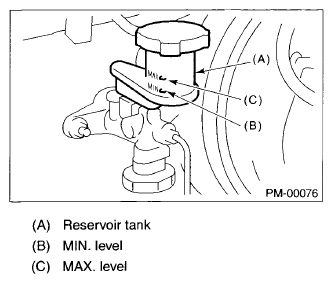

- Check the fluid level using the scale on the outside of the clutch reservoir tank (A). If the level is below "MIN" (B), inspect the clutch master cylinder, operating cylinder and hydraulic line for fluid leaks. If fluid leaks are found, repair or replace. If fluid leaks are not found, add clutch fluid to bring it up to "MAX" (C) of clutch reservoir tank. < Ref. to
FLUID , RECOMMENDED MATERIALS, Recommended Materials. >
CAUTION:
- Prevent the clutch fluid from being splashed over vehicle body. If clutch fluid is splashed over vehicle body, flush it, and then wipe it up.
- If the fluid is spilt on exhaust pipe, wipe it off with a clean cloth to avoid emitting smoke or causing a fire.
- Avoid mixing brake fluid of different brands to prevent fluid performance from degrading.
- Be careful not to allow dirt or dust to get into the reservoir tank.
Courtesy of SUBARU OF AMERICA, INC.
