Identification Number And Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

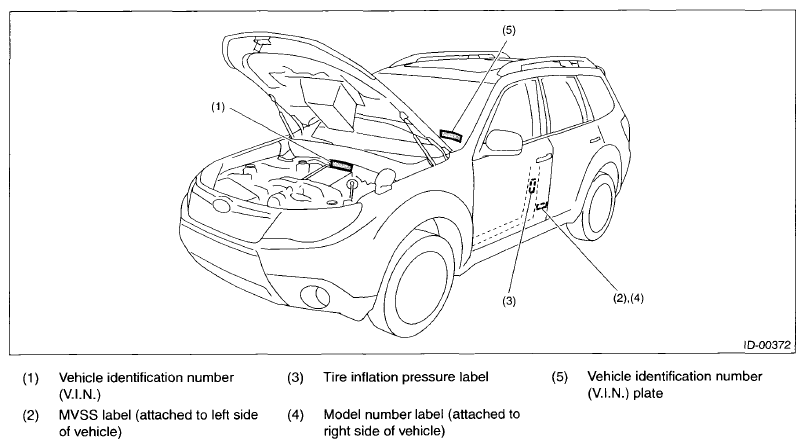

  Fig 1: Positioning Of Plate Label For Identification

  Courtesy of SUBARU OF AMERICA, INC.
• MVSS LABEL

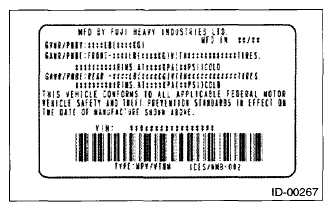

  Fig 2: MVSS Label

  Courtesy of SUBARU OF AMERICA, INC.
• MODEL NUMBER LABEL

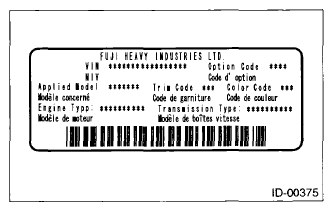

  Fig 3: Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE

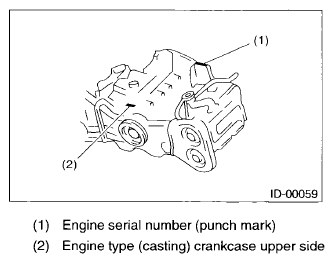

  Fig 4: Engine Serial Number And Engine Type Crankcase Upper Side

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION

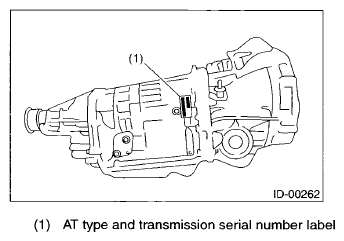

  Fig 5: AT Type And Transmission Serial Number Label

  Courtesy of SUBARU OF AMERICA, INC.
• MANUAL TRANSMISSION

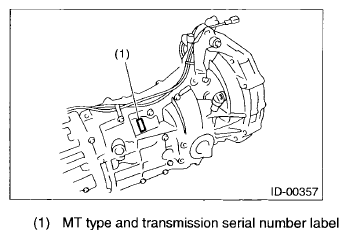

  Fig 6: MT Type And Transmission Serial Number Label

  Courtesy of SUBARU OF AMERICA, INC.
• REAR DIFFERENTIAL

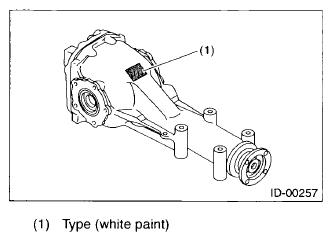

  Fig 7: Rear Differential - White Paint

  Courtesy of SUBARU OF AMERICA, INC.
