Turbo Model (Check Timing Belt Position)

Remove the timing belt covers (LH) and (RH).
Rotate the crank pulley to align the 1 line mark (A) on the RH intake camshaft pulley to the notch (B) on the timing belt cover and check the following points.
1. Check that the 2 line marks (C) on the RH intake camshaft pulley and the exhaust camshaft pulley are aligned with each other.
2. Check that the 1 line mark (D) on the RH exhaust camshaft pulley aligns with the notch (E) on the timing belt cover.

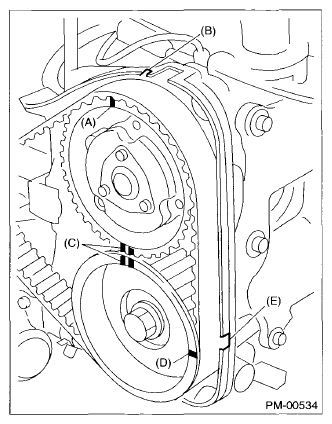

  Fig 1: Intake And Exhaust Camshaft Pulley Line Mark
  Courtesy of SUBARU OF AMERICA, INC.
3. Check that the 1 line mark (A) on the LH intake camshaft pulley aligns with the notch (B) on the timing belt cover.
4. Check that the 2 line marks (C) on the LH intake camshaft pulley and the exhaust camshaft pulley are aligned with each other.
5. Check that the 1 line mark (D) on the LH exhaust camshaft pulley aligns with the notch (E) on the timing belt cover.

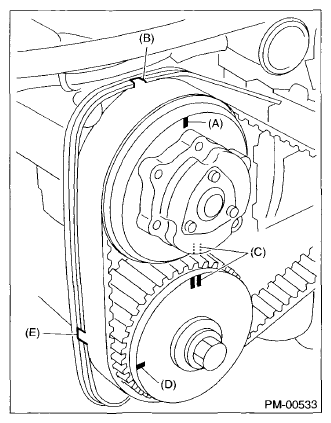

  Fig 2: Intake Camshaft Pulley Line Marks
  Courtesy of SUBARU OF AMERICA, INC.
If the camshaft pulley position is inappropriate, check the defective point and repair or replace parts as necessary.
