Special Tool

SUBARU SELECT MONITOR

SPECIAL TOOL DESCRIPTION CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	1B022XU0	SUBARU SELECT	MONITOR III KIT Used for setting of each function and troubleshooting for electrical system.

TEST HARNESS AB

TEST HARNESS AB REFERENCE CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA000	TEST HARNESS AB	Used when measuring voltage and resistance of occupant detection system.

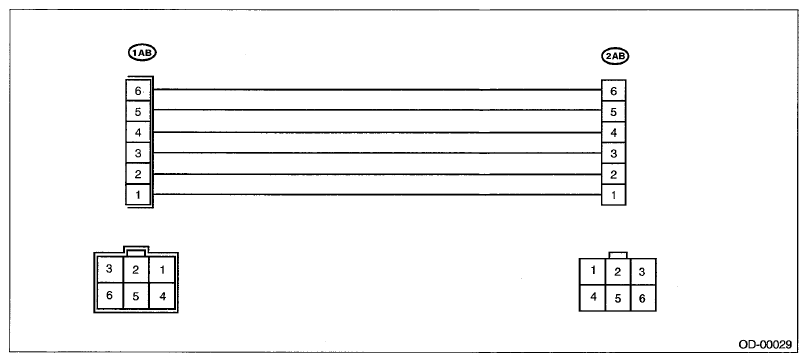

Fig 1: Test Harness AB Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AE

TEST HARNESS AE REFERENCE CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA030	TEST HARNESS AE	Used for diagnosing seat belt tension sensor. Used together with test harness Y.

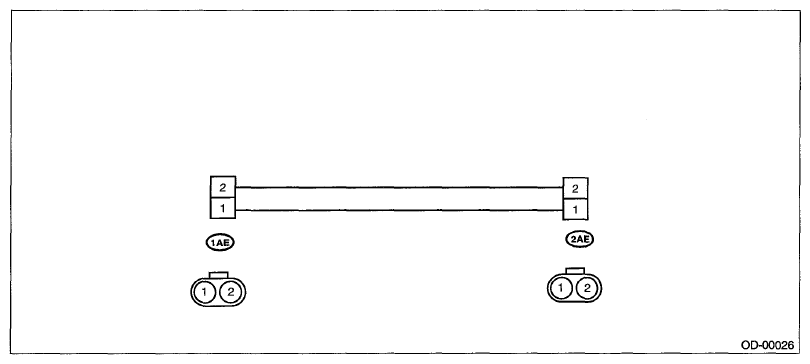

Fig 2: Test Harness AE Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

TEST HARNESS AG REFERENCE CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

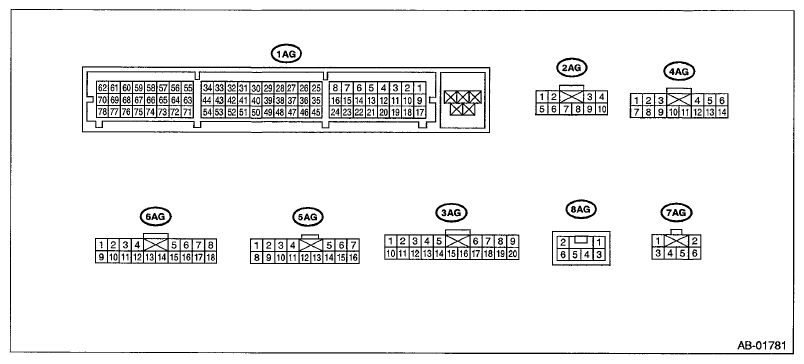

Fig 3: Test Harness AE Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

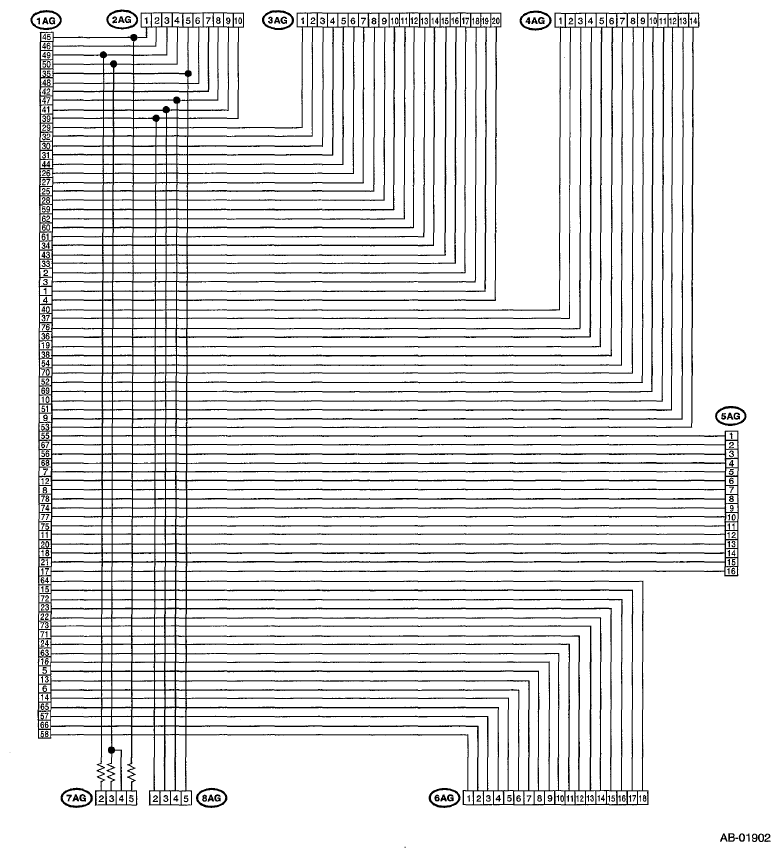

Fig 4: Test Harness AG Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Y

TEST HARNESS Y REFERENCE CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

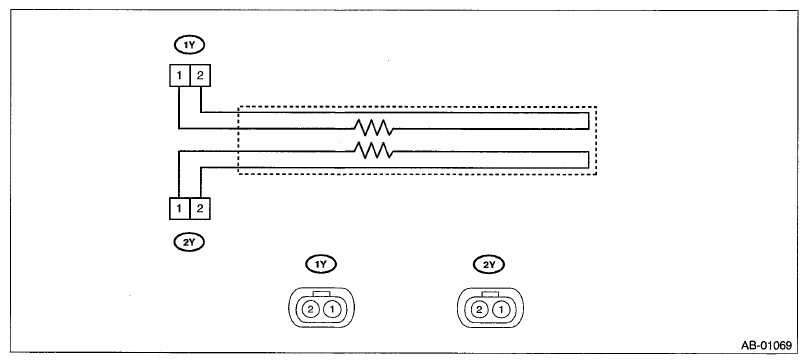

Fig 5: Test Harness Y Diagram

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

AIRBAG RESISTOR REFERENCE CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.

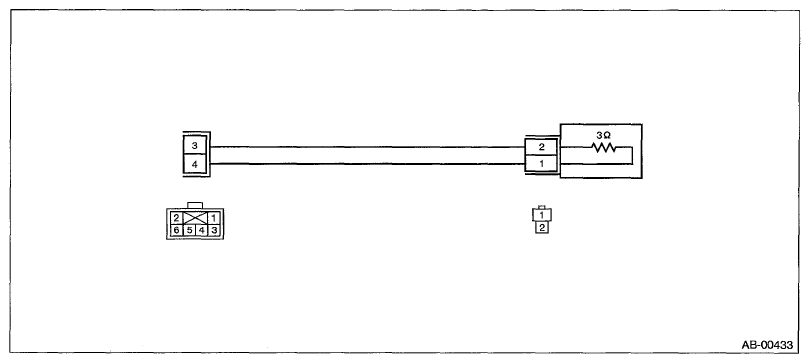

Fig 6: Airbag Resistor Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.
