2-4 Brake

Separate the 2-4 brake piston and piston retainer.

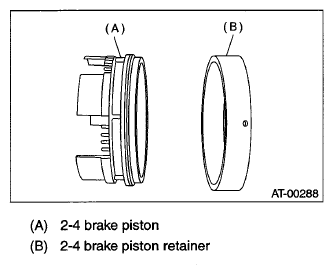

Fig 1: 2-4 Brake Piston And Piston Retainer
G07665770Courtesy of SUBARU OF AMERICA, INC.
