Control Valve Body: Installation

Check the control valve body for dust and other foreign matter.
Temporarily attach the control valve body to the transmission.
Install the oil cooler pipe.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

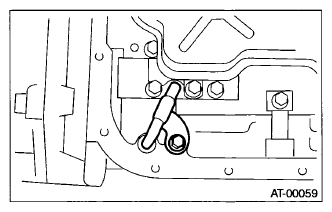

Fig 1: Oil Cooler Pipe With Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts equally.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

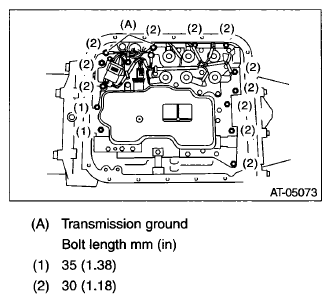

Fig 2: Transmission Ground Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector.

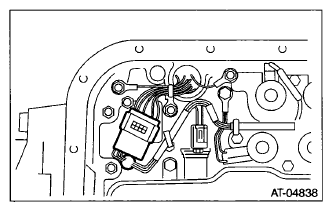

Fig 3: Control Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position of the oil pan.

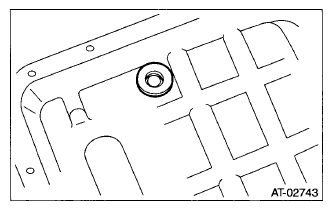

Fig 4: Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

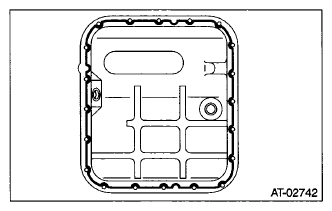

Fig 5: Proper Amount Of Liquid Gasket Applying Area On Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Fill the three holes aside from the bolt holes in the transmission case, with liquid gasket.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

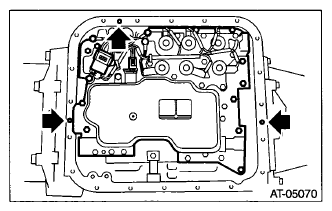

Fig 6: Locating Transmission Case Bolt Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Lower the vehicle.
Connect the ground cable to battery.
Fill ATF from the oil charge pipe. < Ref. to AUTOMATIC TRANSMISSION FLUID . >
Bleed the air of control valve. < Ref. to PROCEDURE , Air Bleeding of Control Valve. >
Check the ATF level. < Ref. to INSPECTION , Automatic Transmission Fluid. >
Perform the diagnosis again. < Ref. to PROCEDURE , Learning Control. >
