Extension Case: Installation

Apply vaseline to the contact surface, and attach the selected thrust needle bearing to the end surface of the reduction drive gear.
NOTE: Install the thrust needle bearing in the correct direction.
Install a new gasket.
Install the extension case to transmission case.
Tighten bolts to secure the extension case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

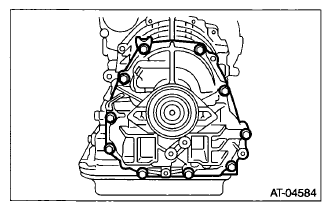

Fig 1: Extension Case With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
