Front Differential Assembly: Installation

Install the front differential assembly to the converter case.
NOTE: Be careful not to damage the inside of the converter case (especially the mating surface of the differential side retainer).

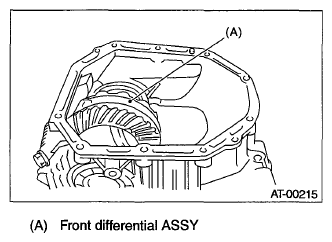

Fig 1: Front Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the O-rings to the left and right side differential retainers.
NOTE: Use new O-rings.
Install the differential side retainers using ST. < Ref. to ADJUSTMENT , Front Differential Assembly. >
NOTE: ST WRENCH ASSY (499787000) can also be used.
ST 18630AA010 WRENCH COMPL RETAINER
Adjust the backlash of the front differential. < Ref. to ADJUSTMENT , Front Differential Assembly. >
Install the lock plate.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

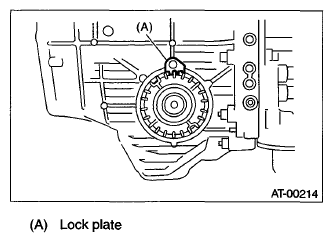

Fig 2: Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the seal pipe to the converter case.
NOTE: Use a new seal pipe.

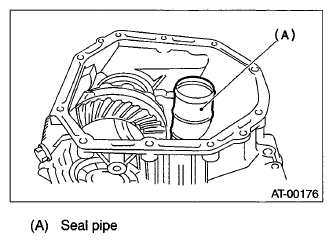

Fig 3: Seal Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the converter case to the transmission case. < Ref. to INSTALLATION , Converter Case. >
Insert the inhibitor switch connector and transmission harness connector onto the stay.

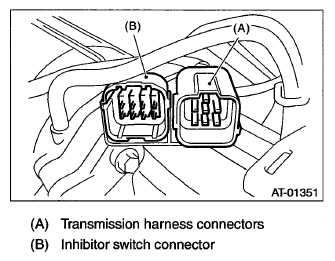

Fig 4: Inhibitor Switch Connector And Transmission Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the ATF cooler pipe. < Ref. to INSTALLATION , ATF Cooler Pipe and Hose. >
Install the oil charge pipe together with an O-ring. < Ref. to INSTALLATION , Oil Charge Pipe. >
Apply ATF to the O-ring, insert the input shaft while rotating the shaft slowly by hand, and check the amount of protrusion.
NOTE: Use new O-rings.

Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

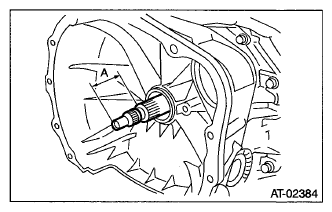

Fig 5: Input Shaft (Protrusion A)
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to INSTALLATION , Torque Converter Clutch Assembly. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
