Inhibitor Switch: Installation

Install the inhibitor switch to the transmission case.

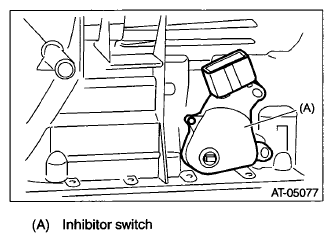

Fig 1: Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

ST 398791600 REMOVER

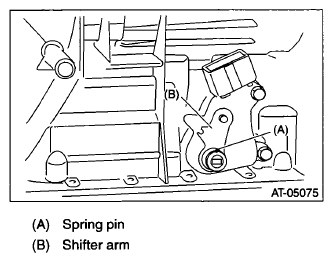

Fig 2: Shifter Arm And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Move the shifter arm to the neutral position.
Using the ST, tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

ST 499267300 STOPPER PIN

Fig 3: Tightening Inhibitor Switch Bolts Using ST
Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor switch connector to the inhibitor switch.

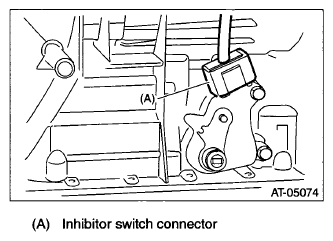

Fig 4: Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to the transmission case.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

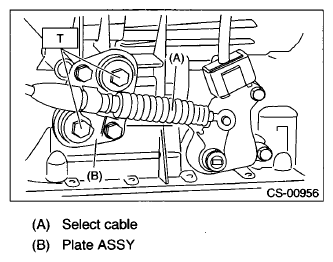

Fig 5: Select Cable And Plate Assembly With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

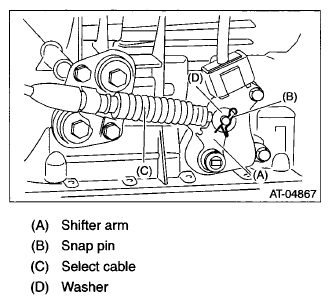

Fig 6: Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe, (non-turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
Install the center exhaust pipe, (turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
Lower the vehicle.
Connect the battery ground terminal.
Check the inhibitor switch. < Ref. to INSPECTION , Inhibitor Switch. >
