Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Press-fit it to the bottom of bearing shoulder completely.

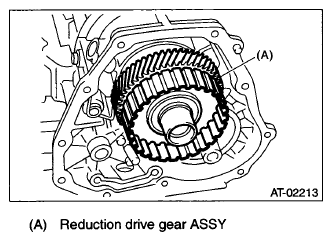

    Fig 1: Reduction Drive Gear Assembly
    G07665617Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Ref. to INSTALLATION , Reduction Driven Gear. >
  3. Connect the transmission case with the extension case. < Ref. to INSTALLATION , Extension Case. >
  4. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
