Reduction Driven Gear: Installation

  1. Set the range select lever to the "P" range.
  2. Using a plastic hammer, install the reduction driven gear assembly and the new washer, and tighten the drive pinion lock nut.
    NOTE: Use a new washer and lock nut.

    Tightening torque:

    100 N.m (10.2 kgf-m, 73.8 ft-lb)

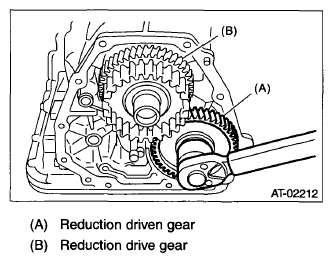

    Fig 1: Tightening Drive Pinion Lock Nut
    G07665611Courtesy of SUBARU OF AMERICA, INC.
  3. After tightening, stake the lock nut securely.
  4. Connect the transmission case with the extension case. < Ref. to INSTALLATION , Extension Case. >
  5. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
