Transfer Clutch: Installation

Select the thrust needle bearing. < Ref. to ADJUSTMENT , Transfer Clutch. >
Install the transfer clutch assembly to the extension case.

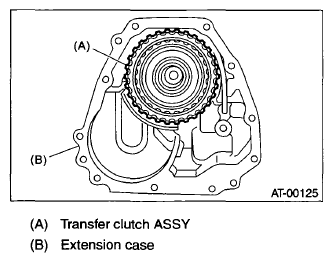

Fig 1: Transfer Clutch Assembly And Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the extension case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

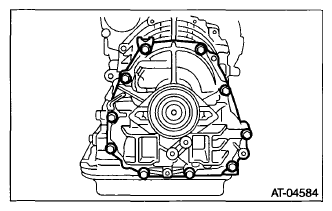

Fig 2: Extension Case With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
