Pitching Stopper

  1. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

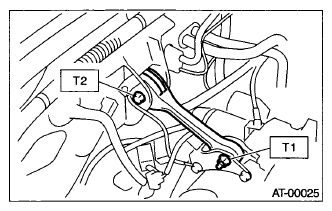

    Fig 1: Pitching Stopper Bolt And Nut With Torque Specification
    G07665503Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air intake boot assembly, (non-turbo model) < Ref. to INSTALLATION , Air Intake Boot. >
  3. Install the intercooler. (turbo model) < Ref. to INSTALLATION , Intercooler. >
