Throttle Sensor (Method With Circuit Tester)

NOTE: Individual difference of the accelerator pedal may not be corrected sufficiently on the ECM side after DTCs were cleared or the battery was removed and installed on the vehicle. Therefore, when the reference voltage is not reached after following the procedure, repeat the ignition switch ON (engine OFF) and ignition switch OFF operations 40 times at intervals of three seconds or more, and then measure the voltage again.

Remove the glove box lower cover. < Ref. to REMOVAL , Glove Box. >
Remove the lower inner trim of passenger's side. < Ref. to REMOVAL , Lower Inner Trim. >
Turn over the floor mat of passenger's seat.
Remove the protect cover.

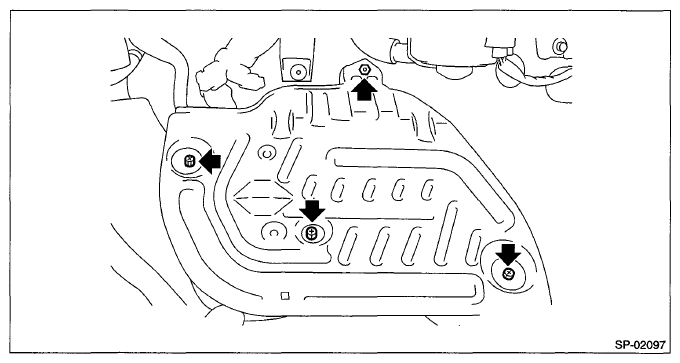

Fig 1: Locating Protect Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.

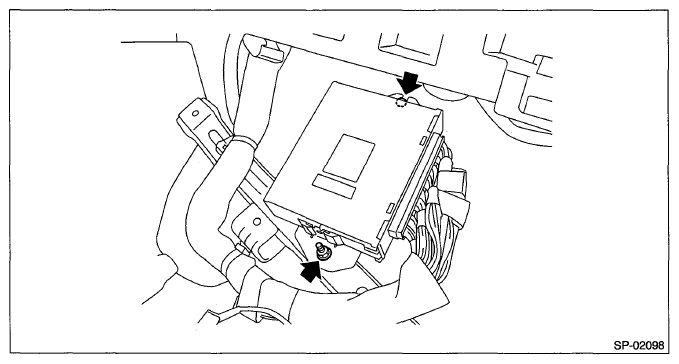

Fig 2: Locating ECM Bracket Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Turn the ignition switch to ON. (engine OFF)

Measure the voltage between ECM connector terminals.

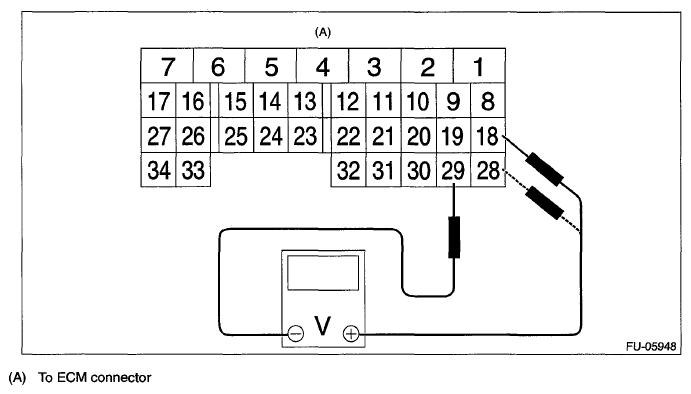

Fig 3: Measuring Voltage Between ECM Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

ECM CONNECTOR TERMINALS REFERENCE CHART

Throttle sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (Full closed)	18 (+) and 29 (-)	Approx. 0.6 V
Main	Depressed (Full opened)	18 (+) and 29 (-)	Approx. 4.0 V
Sub	Not depressed (Full closed)	28 (+) and 29 (-)	Approx. 1.5 V
Sub	Depressed (Full opened)	28 (+) and 29 (-)	Approx. 4.2 V

After inspection, install the related parts in the reverse order of removal.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
