Crankshaft Position Sensor: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

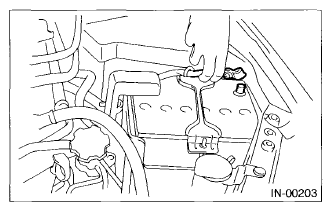

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures crankshaft position sensor to oil pump.

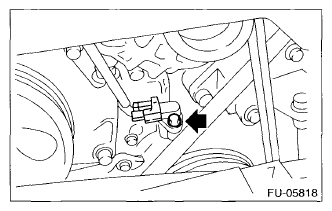

Fig 2: Locating Bolt And Crankshaft Position Sensor To Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the sensor, and then disconnect the connector from the crankshaft position sensor.

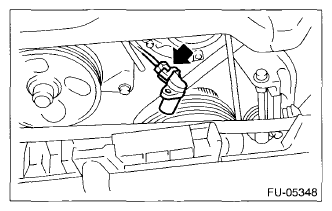

Fig 3: Locating Crankshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
