Oil Flow Control Solenoid Valve: Disassembly

  1. Remove the two mounting bolts securing oil return cover, and remove the oil return cover and gasket.
  2. Remove the bolt securing oil flow control solenoid valve, and remove the oil flow control solenoid valve.

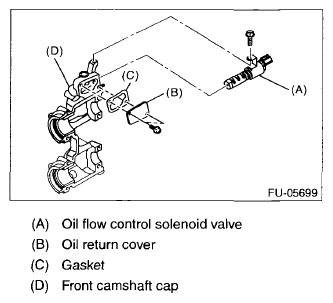

    Fig 1: Identifying Front Camshaft Cap, Oil Flow Control Solenoid Valve, Oil Return Cover And Gasket
    G07670487Courtesy of SUBARU OF AMERICA, INC.
