Fuel Sub Level Sensor: Installation

Install in the reverse order of removal while being careful of the following.

• Make sure the sealing portion is free from fuel or foreign matter before installation.
• Align protrusion (A) of the gasket to the position shown in the figure.
• Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
• After tightening the bolts to the specified torque in the order indicated in the figure, install the fuel sub level sensor protector.

Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

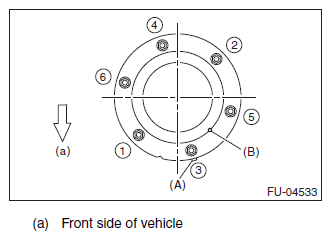

Fig 1: Identifying Fuel Sub Level Sensor Upper Plate Nuts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

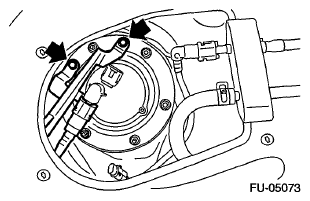

Fig 2: Locating Fuel Sub Level Sensor Protector Bolts

Courtesy of SUBARU OF AMERICA, INC.
