Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.
Install the TCM.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

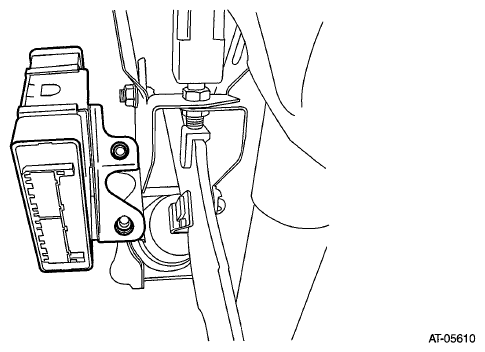

Fig 1: Identifying Transmission Control Module (TCM) And Bracket (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
Install the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER EI-64, INSTALLATION, Instrument Panel Lower Cover.
Execute the learning control promotion. Refer to LEARNING CONTROL CVT(diag)-20, Learning Control.
