Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.

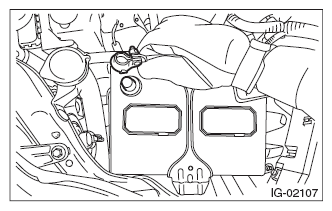

    Fig 1: Disconnecting Ground Cable From Battery
    G07910834Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the trunk trim panel assembly-side RH. Refer to REAR QUARTER TRIM .
  3. Remove the fuel pump control unit.
    Fig 2: Locating Fuel Pump Control Mounting Nut Unit
    G06651309Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from fuel pump control unit.
    Fig 3: Disconnecting Connector From Fuel Pump Control Unit
    G06651311Courtesy of SUBARU OF AMERICA, INC.
