Intake Manifold: Assembly

  1. Install the tumble generator valve assembly onto intake manifold.
    NOTE: Use new O-rings.

    Tightening torque:

    8.3 N.m (0.8 kgf-m, 6.1 ft-lb)

    Fig 1: Locating Tumble Generator Valve Assembly Mounting Bolts
    G06648805Courtesy of SUBARU OF AMERICA, INC.
  2. Install the nipple to the intake manifold. (model with integrated plate)
    NOTE: Use new O-rings.

    Tightening torque:

    7.8 N.m (0.8 kgf-m, 5.8 ft-lb)

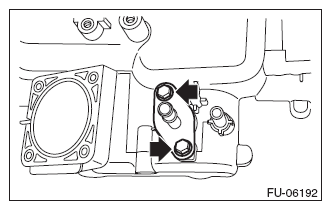

    Fig 2: Locating Intake Manifold Nipple (With Integrated Plate)
    G07910710Courtesy of SUBARU OF AMERICA, INC.
  3. Set the fuel delivery pipe and fuel pipe, tighten the clamps which hold the fuel hose to the fuel delivery pipe, and install the fuel delivery pipe to the intake manifold.

    Tightening torque:

    T1: 1.25 N.m (0.1 kgf-m, 0.9 ft-lb)

    T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

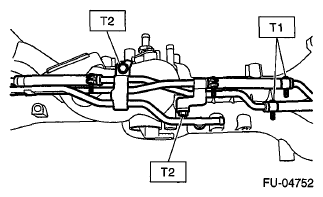

    Fig 3: Identifying Fuel Hoses Mounting Clamps
    G06648808Courtesy of SUBARU OF AMERICA, INC.
  4. Install the fuel delivery pipe to the intake manifold.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

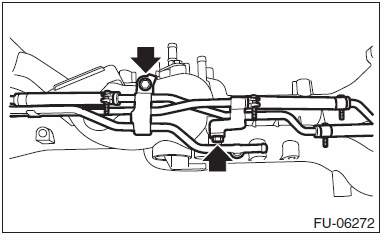

    Fig 4: Identifying Fuel Delivery Pipe Bolts
    G00525071Courtesy of SUBARU OF AMERICA, INC.
  5. Connect vacuum hose (A), vacuum control hose (B) and brake booster vacuum hose (C) to the intake manifold.

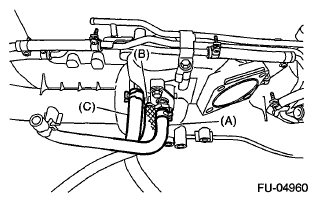

    Fig 5: Identifying Vacuum Hose, Vacuum Control Hose And Brake Booster Vacuum Hose
    G06648802Courtesy of SUBARU OF AMERICA, INC.
  6. Install the fuel injector.

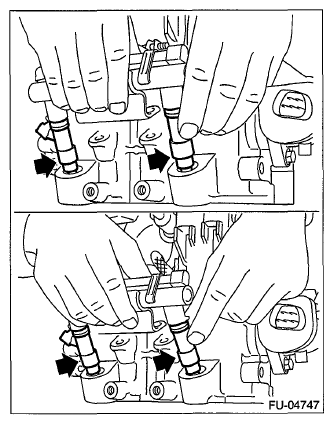

    Fig 6: Removing Fuel Injector
    G06648801Courtesy of SUBARU OF AMERICA, INC.
  7. Install the bolts which secure fuel pipe to the intake manifold.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

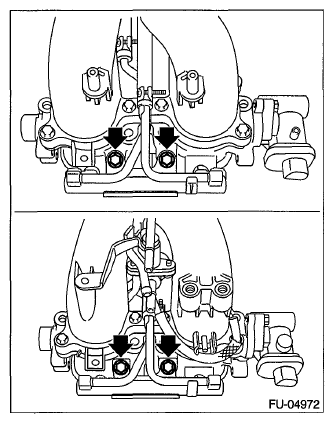

    Fig 7: Locating Fuel Pipe Mounting Bolts
    G06648800Courtesy of SUBARU OF AMERICA, INC.
  8. Install the bolts which secure fuel delivery pipe to the intake manifold, and connect the pressure regulator vacuum hose to the intake manifold.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

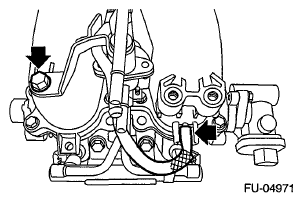

    Fig 8: Locating Fuel Delivery Pipe Assembly Mounting Bolts
    G06648799Courtesy of SUBARU OF AMERICA, INC.
  9. Set the engine harness to the intake manifold, and connect the connector to the fuel injector and tumble generator valve assembly.

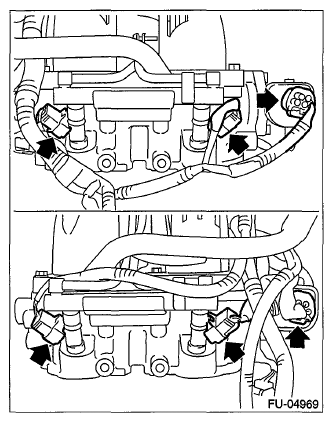

    Fig 9: Locating Fuel Injector Connector
    G06648797Courtesy of SUBARU OF AMERICA, INC.
  10. Install the throttle body to the intake manifold.
    NOTE: Use new O-rings.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

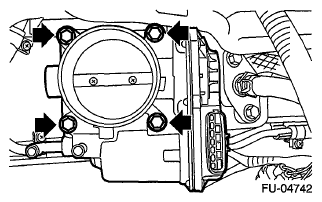

    Fig 10: Locating Throttle Body Intake Manifold Mounting Bolts
    G06648796Courtesy of SUBARU OF AMERICA, INC.
  11. Connect the connectors to the purge control solenoid valves 1 and 2.

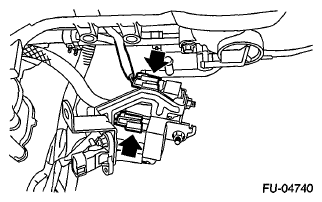

    Fig 11: Locating Purge Control Solenoid Valves Connectors
    G06648794Courtesy of SUBARU OF AMERICA, INC.
  12. Install the solenoid valve bracket assembly to the intake manifold, and connect the connector to the manifold absolute pressure sensor.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

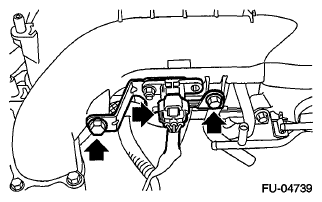

    Fig 12: Locating Manifold Absolute Pressure Sensor Connector And Mounting Bolt
    G06648793Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the vacuum hose to the intake manifold and fuel delivery pipe.

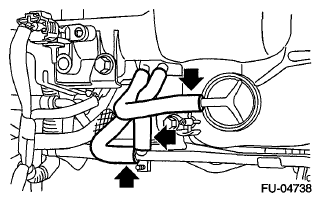

    Fig 13: Locating Intake Manifold And Fuel Delivery Pipe Vacuum Hose
    G06648792Courtesy of SUBARU OF AMERICA, INC.
  14. Install the filter assembly.

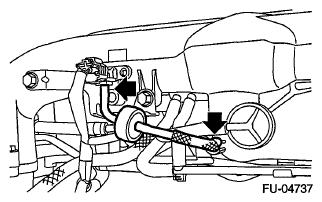

    Fig 14: Removing Filter Assembly
    G06648791Courtesy of SUBARU OF AMERICA, INC.
  15. Install the intake manifold protector LH to the intake manifold, and install the engine ground terminal to the intake manifold protector.
    NOTE: Route the from front oxygen (A/F) sensor connector and rear oxygen sensor connector inside the intake manifold protector, as shown in the figure.

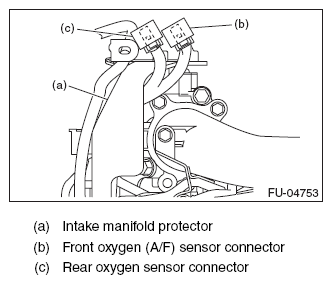

    Fig 15: Identifying Intake Manifold Protector, Front Oxygen (A/F) Sensor Connector And Rear Oxygen Sensor Connector
    G07910728Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

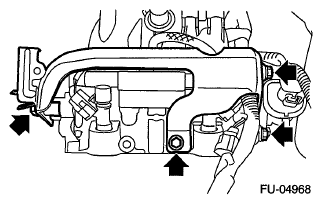

    Fig 16: Locating Bolts And Intake Manifold Protector LH
    G06648790Courtesy of SUBARU OF AMERICA, INC.
  16. Install front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B) to the intake manifold protector LH, and also install clip (C) which holds the engine harness.

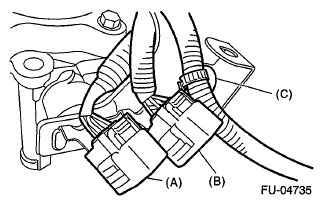

    Fig 17: Identifying Front Oxygen (A/F) Sensor Connector, Rear Oxygen Sensor Connector And Intake Manifold Protector LH
    G06648789Courtesy of SUBARU OF AMERICA, INC.
  17. Install the intake manifold protector RH to the intake manifold.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

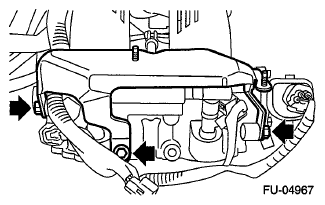

    Fig 18: Locating Intake Manifold Protector Mounting Bolts
    G06648788Courtesy of SUBARU OF AMERICA, INC.
