Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

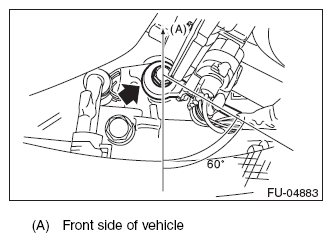

Fig 1: Locating Knock Sensor Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

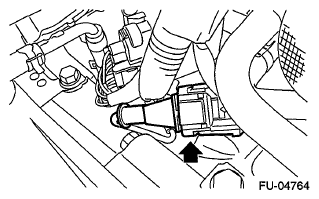

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Refer to INTERCOOLER .
Connect the ground cable to battery.

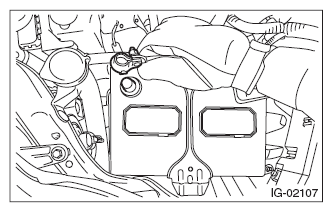

Fig 3: Connecting Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
