Main Relay: Removal

  1. Disconnect the ground cable from battery.

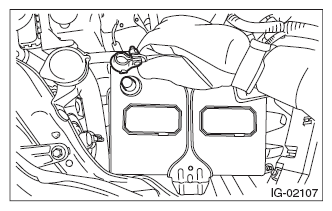

    Fig 1: Disconnecting Ground Cable From Battery
    G07910822Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box lid assembly. Refer to GLOVE BOX .
  3. Remove the main relay from the relay holder.
    Fig 2: Locating Relay Holder
    G06648349Courtesy of SUBARU OF AMERICA, INC.
