Exhaust Side

Install in the reverse order of removal.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 1: Locating Camshaft Mounting Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 7 N.m (0.7 kgf-m, 5.2 ft-lb)

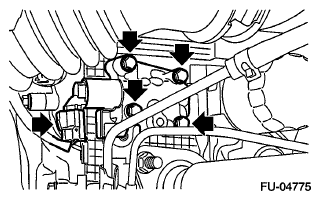

Fig 2: Identifying Ground Cable And Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.
