Rear Oxygen Sensor: Installation

CAUTION: If lubricant is spilt over the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

Before installing rear oxygen sensor, apply the anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor.

Anti-seize compound:

NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent
Install the rear oxygen sensor.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

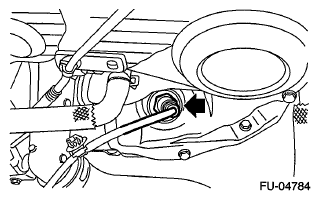

Fig 1: Locating Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear oxygen sensor, and hold the rear oxygen sensor harness with clip (A).

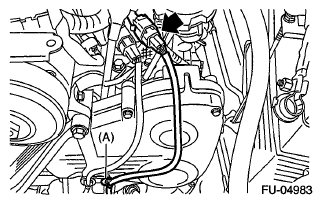

Fig 2: Locating Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator main fan motor assembly. Refer to RADIATOR SUB FAN AND FAN MOTOR .
Connect the ground cable to battery.

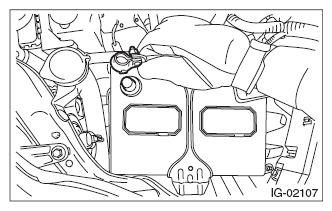

Fig 3: Connecting Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
