Throttle Body: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

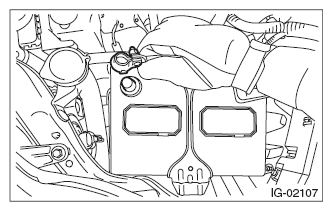

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Refer to FRONT UNDER COVER .
Drain approximately 2.0 l (2.1 US qt, 1.8 Imp qt) of engine coolant. Refer to ENGINE COOLANT .
Remove the intercooler. Refer to INTERCOOLER .
Remove the bolts which secure the engine harness and PCV pipe to the intake manifold, and remove the intake duct from the throttle body.

Fig 2: Locating Engine Harness And PCV Pipe Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors and preheater hoses from the throttle position sensor.

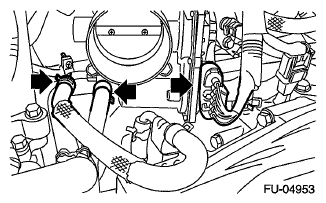

Fig 3: Locating Throttle Position Sensor Connectors And Preheater Hoses
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the throttle body to the intake manifold, and remove the throttle body.

Fig 4: Locating Intake Manifold Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
