Tumble Generator Valve Assembly: Removal
- Release the fuel pressure. Refer to
, RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
- Remove the collector cover.

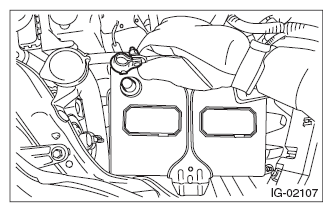

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Open the fuel filler lid and remove the fuel filler cap.
- Remove the intake manifold. Refer to
, REMOVAL , Intake Manifold.

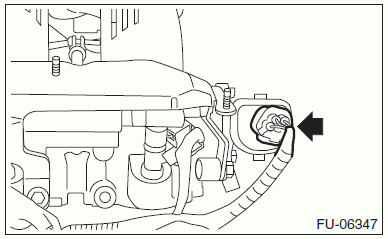

- Disconnect the connector from the tumble generator valve assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the fuel injector. Refer to
, REMOVAL , Fuel Injector.
- Remove the tumble generator valve assembly from the intake manifold.
Courtesy of SUBARU OF AMERICA, INC.
