Wastegate Control Solenoid Valve: Removal

Disconnect the ground cable from battery.

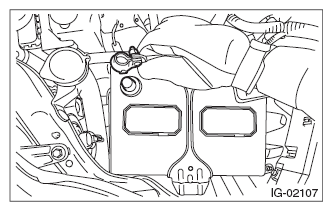

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan motor assembly. Refer to RADIATOR SUB FAN AND FAN MOTOR .
Remove the screws which hold the wastegate control solenoid valve to the intake duct.

Fig 2: Locating Wastegate Control Solenoid Valve Screws
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Refer to FRONT UNDER COVER
Disconnect the connector and air control hose from the wastegate control solenoid valve, and remove the wastegate control solenoid valve from the intake duct.

Fig 3: Locating Wastegate Control Solenoid Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
