Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

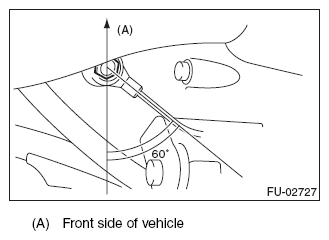

Fig 1: Identifying Knock Sensor Cord Angle
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

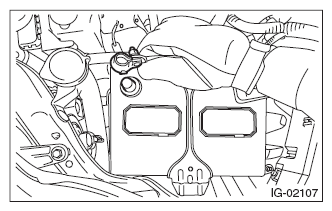

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot assembly. Refer to AIR INTAKE BOOT .
Connect the ground cable to battery.

Fig 3: Connecting Ground Cable To Battery

Courtesy of SUBARU OF AMERICA, INC.
