Fuel Injection Fuel Systems (H6DO)
>>
General Description
>>
Components With Torque Specifications
>>
Engine Harness
>>
Engine harness assembly diagram 2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine harness assembly diagram 2

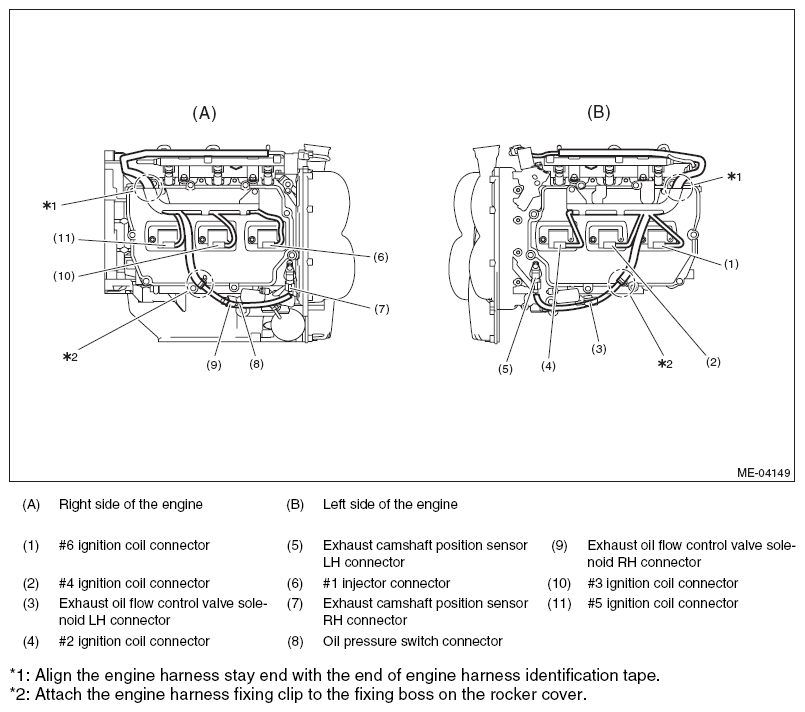

Fig 1: Engine Harness Assembly Diagram 2
