Keyless Entry System

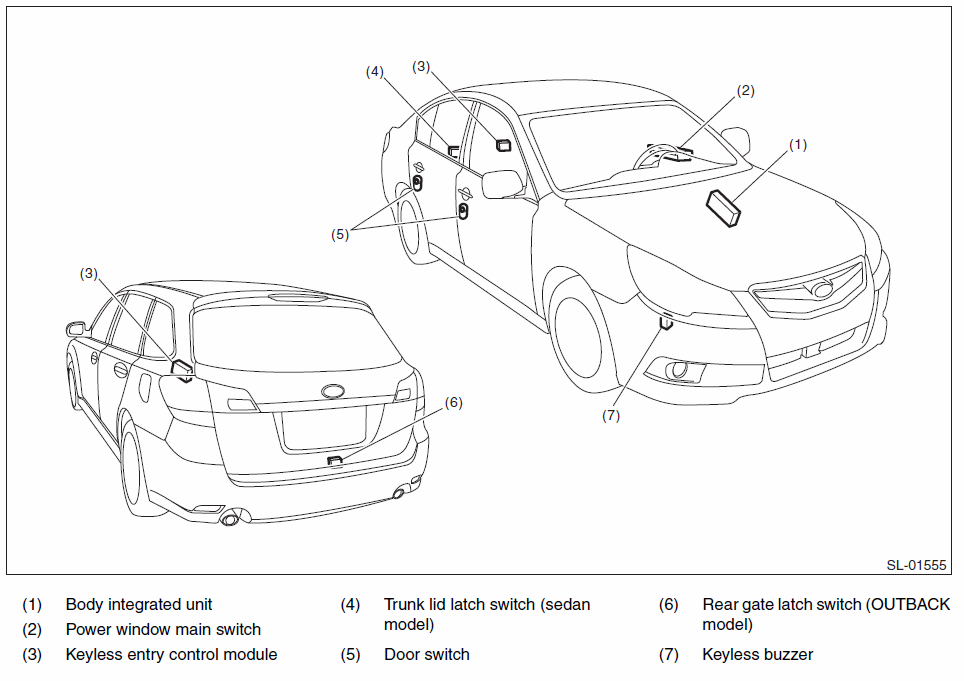

Fig 1: Identifying Keyless Entry System Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
