Control Module

AUTO A/C MODEL

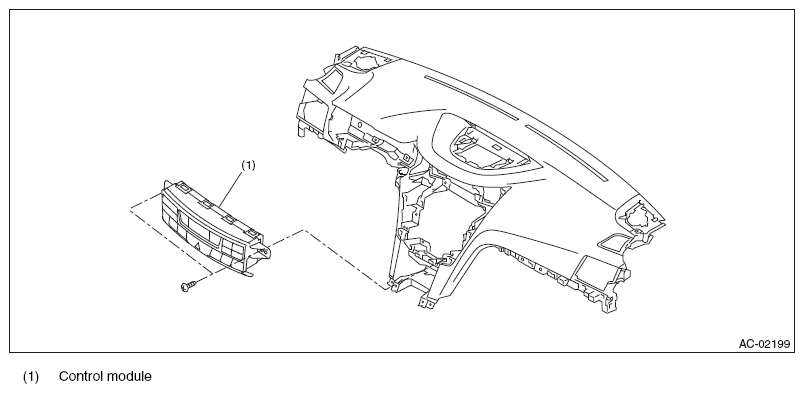

Fig 1: Identifying Control Module (Auto A/C Model)
Courtesy of SUBARU OF AMERICA, INC.
MANUAL A/C MODEL

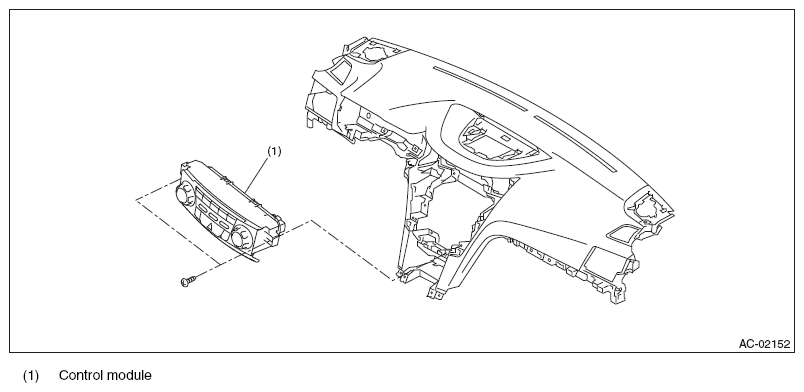

Fig 2: Identifying Control Module (Manual A/C Model)
Courtesy of SUBARU OF AMERICA, INC.
