G Sensor
The G sensor detects changes in the vehicle's acceleration/deceleration rate in the longitudinal direction.

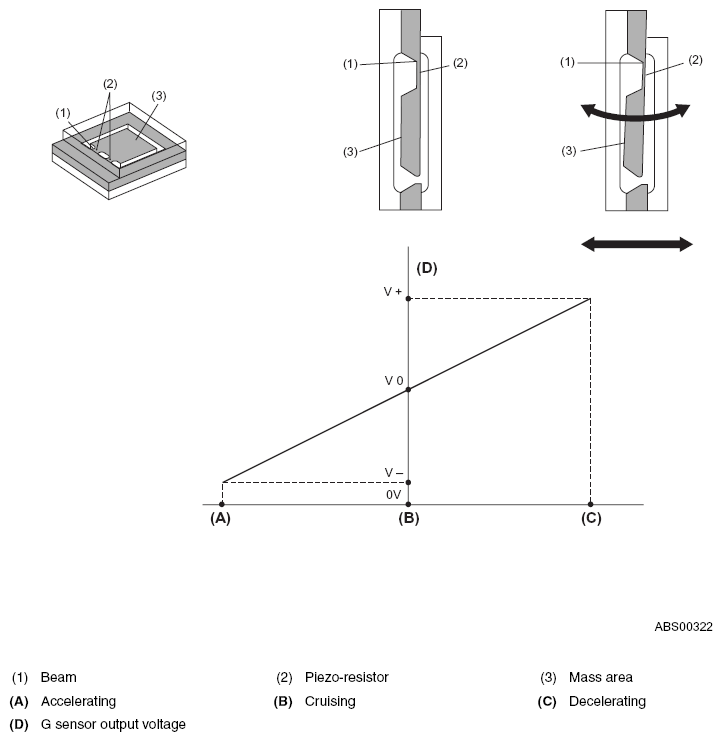

A piezo-resistor is formed on the beam. When the mass area moves during acceleration and deceleration, the beam distorts causing the resistance of the piezo-resistor to change. This change is converted into change in voltage and sent to the ABSCM.
