Vehicle Dynamics Control VDC Diagnostics: Electrical Component Location: Location

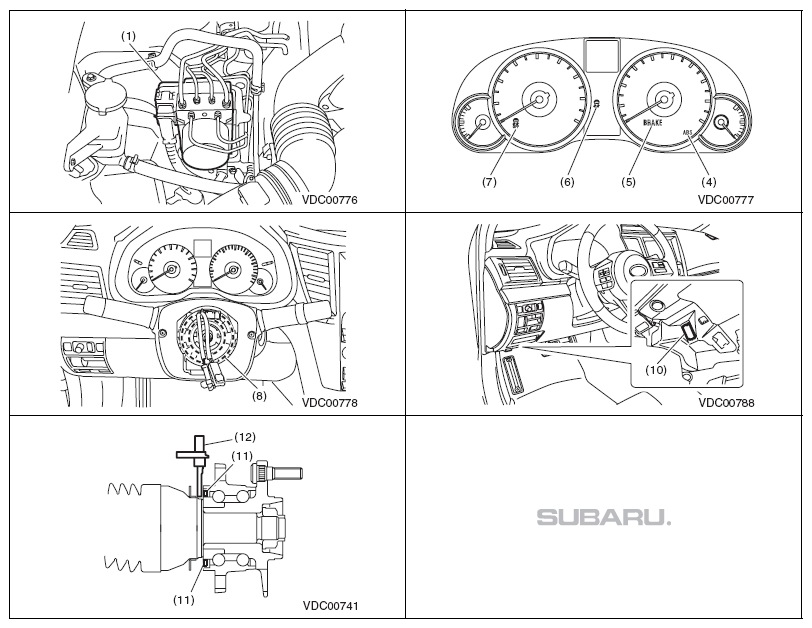

Fig 1: Identifying VDC Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying VDC Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
