Diagnostic procedure

Drive according to the drive pattern described below.

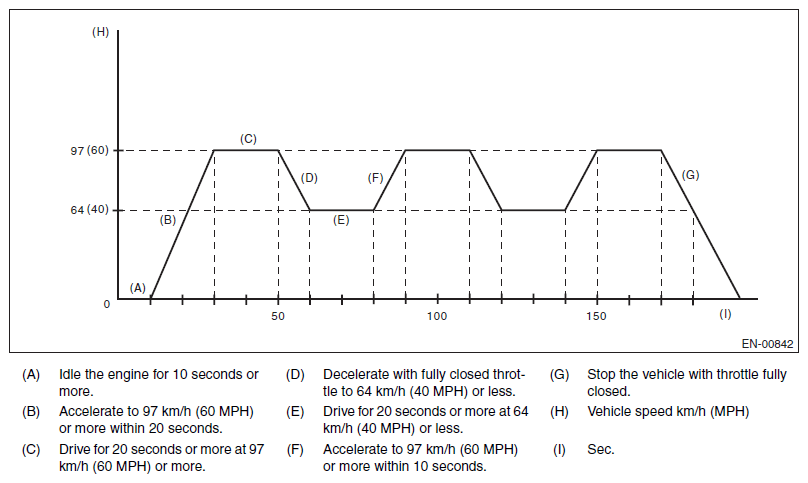

Fig 1: Screen Display - EGR Solenoid Valve Drive Pattern (Drive Cycle C)
G07910166Courtesy of SUBARU OF AMERICA, INC.
