How To Use General Scan Tool

Prepare a scan tool (general scan tool) required by SAE J1978.
Connect the general scan tool to data link connector located in the lower portion of the instrument panel (on the driver's side).

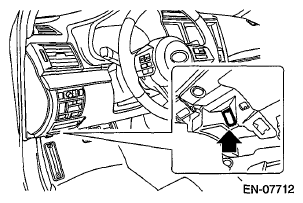

Fig 1: Locating Instrument Panel
Courtesy of SUBARU OF AMERICA, INC.
Using the general scan tool, call up each data. General scan tool functions consist of:
1. MODE $01: Current powertrain diagnostic data
2. MODE $02: Powertrain freeze frame data
3. MODE $03: Emission-related powertrain DTC
4. MODE $04: Clear/Reset emission-related diagnostic information
5. MODE $06: Request on-board monitoring test results for intermittently monitored systems
6. MODE $07: Request on-board monitoring test results for continuously monitored systems
7. MODE $09: Request vehicle information
Read out the data according to repair procedures. (For detailed operation procedure, refer to the general scan tool operation manual.)
NOTE: For details concerning DTC, refer to "List Of Diagnostic Trouble Code (DTC)". Refer to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
