Window Washer

Check that the window washer system injects washer fluid to the specified area of the windshield and rear window glass shown in the figure.

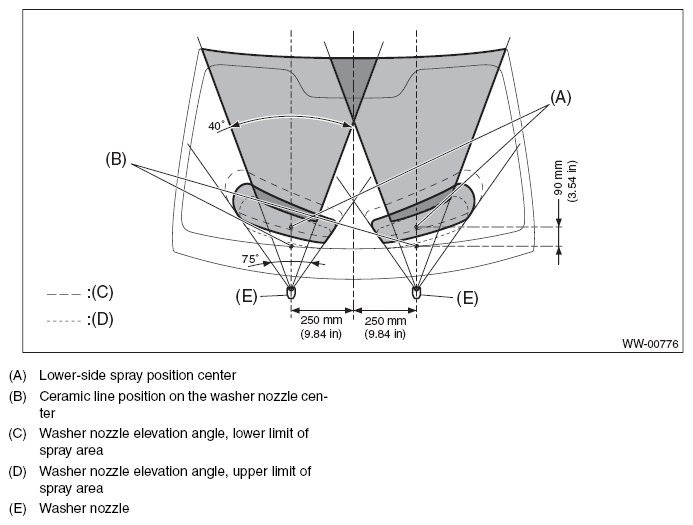

Front injection position:

Fig 1: Identifying Window Washer Specified Area Of Windshield And Rear Window Glass

Courtesy of SUBARU OF AMERICA, INC.

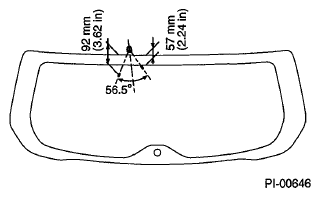

Rear injection position:

Fig 2: Identifying Rear Injection Position Dimension

Courtesy of SUBARU OF AMERICA, INC.
