ENGINE BRIDGE REPLACEMENT PARTS
TECHNICAL INFORMATION TECH TIPS
Reference Number(s): SUSTIPS 1112-03, Date of Issue:
November 01, 2012
| SUBARU: | All Models |
SERVICE INFORMATION

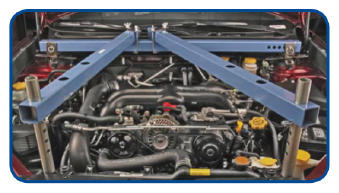

The following replacement parts are available for the Engine Bridge Assembly J-50135.
PARTS INFORMATION
| PART NUMBER | DESCRIPTION |
|---|---|
| J-50135-1 | Radiator Tube 1016MM (40") LG |
| J-50135-2 | Radiator Tube 914.4MM (36") LG |
| J-28467-3 | Strut Tower Support |
| J-50135-3 | Front Support Tube (2 Included) |
| J-28467-1A | Cross Bracket Assembly (2 Included) |
| J-28467-5A | Strut Tower Support Assembly (2 Included) |
| J-28467-6A | Lift Hook Bracket (2 Included) |
| J-28467-8A | Swivel Lift Hook (2 Included) |
| J-28467-9 | 7/16" X 2" Quick Release Pin (2 Included) |
| J-28467-33A | Support Nuts (6 Included) |
| 15997 | 1/2" X 3" Quick Release Pin (2 Included) |
| J-28467-53 | T-Bolt (6 Included) |
| 10230 | 5/16" Tower Support Washer (12 Included) |
| 12004 | 1/2" Lift Hook Washer (2 Included) |
| J-28467-34 | Lift Hook Wing Nut (2 Included) |
