07 2014 FORESTER TURBO, ECM ELECTRICAL TESTING REMINDER

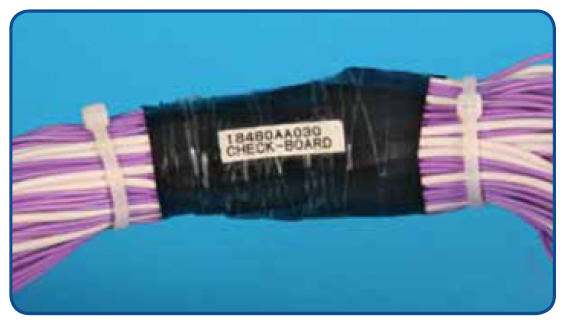

Keep in mind, with the ECM now located in the engine compartment on 2014 Forester Turbo models, all the harness connectors and terminals for the ECM wiring are weather proof. Under NO circumstances should any ECM terminal or connector be tested by back-probing. The weatherproof seal will be damaged and allow moisture to enter the wiring. Engine harness damage from back-probing is not a matter for warranty and can only result from an improper repair procedure. A new test harness, 18460AA030 called a CHECK-BOARD has been developed for diagnosing the ECM wiring on these vehicles.

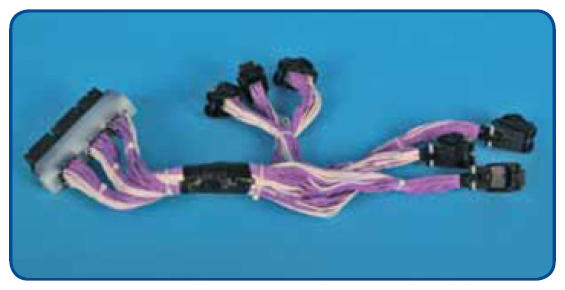

The CHECK-BOARD is a series circuit harness with parallel circuit connectors which fits in between the ECM and the ECM harness connectors. When installing, always connect the weatherproof connectors to the ECM.

It is recommended this harness only be installed during diagnosis.

01 AUTHORIZATION REQUESTS

Here are a few suggestions that will help us to provide you with timely replies to the Authorization Requests (AR) you submit for WARRANTABLE  glass or paint claims that are equal to or exceed $500.00. These suggestions also apply to the ARs for long blocks outlined in the two Service Bulletins (02-109-10R & 02-122-11) that can be found on STIS.

• Use a quality camera to take your pictures. Pictures up to 5MB each can be uploaded to the AR.
• All ARs should include pictures that clearly show the condition being reported.
• Find a location in your dealership where the lighting will allow you to take quality pictures.
• Review all pictures you intend on submitting prior to attaching them to an AR. Only attach quality photos that clearly show the condition being reported.

If you have questions about what is covered under warranty, please refer to the Subaru Claims Policies and Procedures Manual to determine if the condition you are about to submit is covered.

07 2014 MY FORESTER, POWER REAR GATE (PRG) INITIALIZATION PROCEDURE

If you receive a customer concern of an inoperative power rear gate (PRG), once the condition has been confirmed, try performing the following initialization procedure first to see if normal operation can be restored:

1. With the ignition "OFF", open the PRG manually.
2. Carefully (slowly) close the rear gate until the first audible "click" of the rear gate latch mechanism is heard then let go of the rear gate. The auto closer function will then operate to complete the rear gate closing / latching function along with the initialization procedure.
3. After the PRG is fully closed, operate any of the operation switches to verify the automatic opening and closing operation of the PRG.

If the PRG operates normally following initialization, then the condition was the result of conflicting user inputs, power loss, or similar outside influences. If the PRG still does not operate properly, follow the rest of the diagnostic procedures beginning on page PRG(diag)-2 of the 2014 Forester Service Manual.

07 2014 FORESTER NON-TURBO ECM AND BIU LOCATIONS

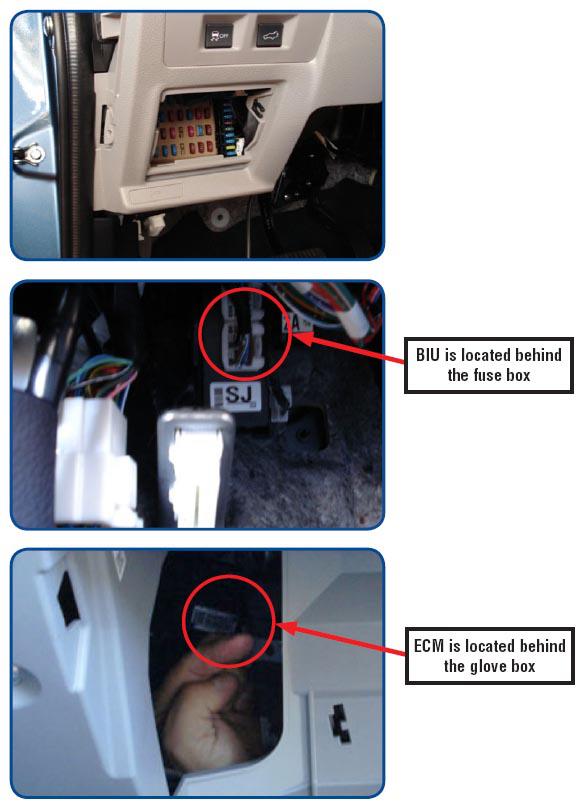

Tech line has received calls recently regarding questions on pin locations not matching up; powers and grounds in the wrong locations, post-repair no start conditions and various trouble codes appearing which were not there before the vehicle was repaired. After questioning the tech and investigating the complaint, we have found the ECM and/or the BIU have been confused with one another. Keep in mind the Turbo Forester has a special test harness for the ECM as described on pg. 2 in this issue of TIPS. The 2014 Non-Turbo Forester still has the ECM inside the vehicle cabin behind the glove box. The BIU is located behind the in-car fuse box. Confusing these two control units can cause false readings when troubleshooting as well as electrical problems and false trouble codes. The photos below show the location of both control units.
