Tech Tips June 2017 (TIPS 0617)

TECH TIPS JUNE 2017

TECHNICAL SERVICE BULLETIN

01 APPLICATION CHART FOR IMMOBILIZER SYSTEM

US model		2005MY	2006MY	2007MY	2008MY	2009MY	2010MY	2011MY	2012MY	2013MY	2014MY	2015MY	2016MY	2017MY	2018MY
Legacy OBK	Key Start type	A type										B type
	keyless Access with pushbutton start system	D type
Tribeca	Key Start type	A type
IMPREZA Crosstrek	Key Start type	A type						B type
	keyless Access with pushbutton start system	D type
WRX/STI	Key Start type	A type									B type
	keyless Access with pushbutton start system	D type
Forester	Key Start type	A type							B type
	keyless Access with pushbutton start system	D type
HEV	keyless Access with pushbutton start system	D type
BRZ	Key Start type	X type
	keyless Access with pushbutton start system	Y type

CANADA model		2005MY	2006MY	2007MY	2008MY	2009MY	2010MY	2011MY	2012MY	2013MY	2014MY	2015MY	2016MY	2017MY	2018MY
Legacy/OBK	Key Start type	A type										E type
IMPREZA Crosstrek	Key Access type	Same as US model												E type

06 BRAKE OVERRIDE SYSTEM OPERATION AND HESITATION COMPLAINTS

Should you encounter a hesitation-type complaint on a 2013MY, BRZ, Legacy, Outback, XV Crosstrek, Impreza or Tribeca, don't overlook the possibility it may be customer-induced due to the operation of the Brake Override System (BOS). This feature was incorporated to avoid accidental acceleration.

Simply stated, if the brake pedal and accelerator pedal are applied at the same time, under specific conditions, engine operation and acceleration will be reduced. This reduced acceleration could be interpreted by a customer as a hesitation. During the time the BOS is activated, any further accelerator pedal application will not increase the vehicle's acceleration. Once the vehicle speed is at 0 MPH, the accelerator pedal must be fully released to return the system to normal operation.

There are some parameters which can be monitored with the SSM to determine if this might be the cause of the customer's complaint. One of the indications this may be the issue would be the customer's actual driveability complaint, but without any related DTCs in memory when the OBD system is checked. If a DTC is found, normal diagnosis should be performed using the appropriate Service Manual procedure.

Information about the operation of the BOS can be reviewed in Training Module 501 pages 87-90. It might be a good time to review this and become familiar with it.

The customer can also Google "Subaru Brake Override System" for an explanation of this system.

07 B1650 PROPER DIAGNOSIS

Techline has been receiving calls with the airbag light on and a DTC B1650 stored in the Airbag Control Module. The first step in the Service Manual trouble tree/flow chart for this DTC says to "Read the DTC of the Occupant Detection System." This step is often over looked. When you have this DTC, think of this as having a P0700 in the ECM (Engine Control Module). When there is a P0700 in the ECM, you should know to look for any stored DTCs in the TCM (Transmission Control Module). When there is a B1650 in the Airbag Control Module, always read the DTC(s) in the Occupant Detection Control Module. If there are DTC(s) in the Occupant Detection Control Module, follow the trouble tree/flow chart diagnostics. If there are no DTCs in the Occupant Detection module, continue diagnosis according to the Service Manual.

07 IGNITION KEY CANNOT BE REMOVED FROM IGNITION SWITCH

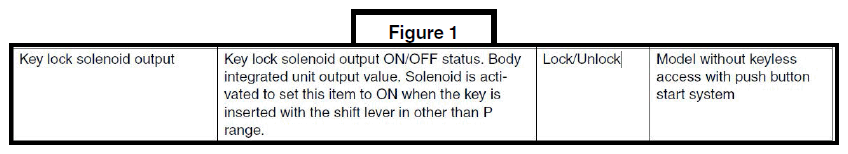

If you confirm a customer complaint of the ignition key not able to be removed from the ignition switch, check the following PID (Figure 1  ) in the Body Integrated Unit  current data display:

If the key lock solenoid output  reads as Lock  , the next step in diagnosis should be to inspect the following PID (Figure 2  ):

P SW  is the park range switch, located in the AT shifter assembly. If the shifter is in the park position and this PID remains OFF  , suspect an issue with the park range switch or circuit. Inspect for drink spills, previous interior repairs, modifications, and shifter position. Troubleshooting procedures can be found in the applicable Service Manual under the AT Shift Lock Control System > KEY INTERLOCK CANNOT BE LOCKED OR RELEASED.

15 LED LIGHTING

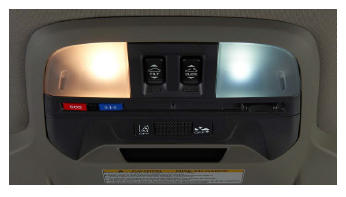

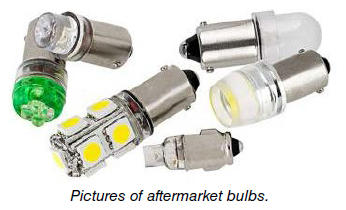

The Techline continues to receive calls where a customer has decided to use an aftermarket lighting source. We have seen multiple issues when LED or HID lights are added to the vehicle. Most common issues include but are not limited to DTCs, abnormal electronic component operation and control module failure. It is recommended that during your pre-inspection any odd looking light source be verified original before moving forward with diagnosis. If aftermarket lighting is identified, we would recommend returning the vehicle to factory specifications or offer an LED Upgrade - Map and Dome Light Kit (H461SFL100), if applicable, then proceed with the appropriate diagnostics.

16 CVT FLUID

The Techline has received multiple calls from Technicians inquiring about CVTF (CVT Fluid) intervals. The CVTF is a "lifetime" fluid and has no maintenance interval. In the case the customer is towing with the vehicle repeatedly, the recommendation from Subaru Corporation is to replace the CVTF every 25,000 miles. Other than repeated towing, there is no reason to replace the CVTF unless there is an issue with the CVT assembly.

CVTF inspection intervals as outlined in the applicable Service Manual maintenance schedule require inspection for external CVTF leakage only  .

While there are fluid inspection guidelines found in the Service Manual section for CVTF Inspection, these fluid inspections are only necessary under the following conditions:

• CVTF leakage is found during inspection and as a result, the CVT may have been operated with low fluid level
• CVT has been used for trailer towing and as a result, CVTF is being inspected as part of CVTF maintenance replacement
• The CVT has experienced some type of internal failure requiring CVTF replacement as part of the repair of this failure.

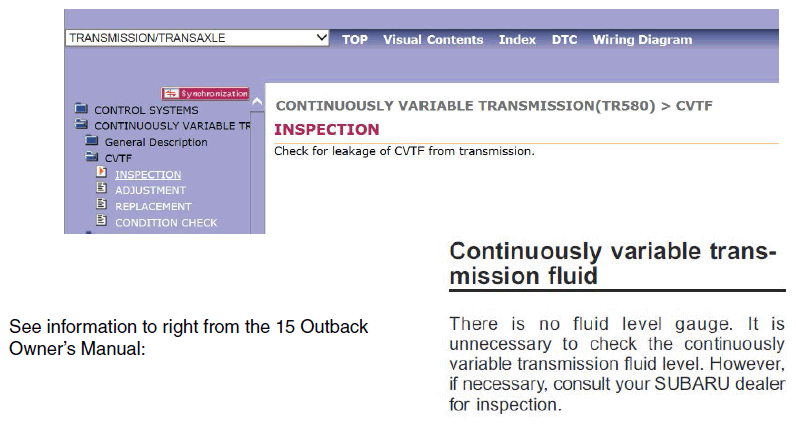

See inspection below from a 15 Outback Service Manual:
