Inner Belt ASSY

CAUTION:

Before installation, make sure that the correct part is used.
During installation, make sure that the seat belts are not twisted.
Make sure that the seat belt harness is not caught. Wrong routing of harnesses may cause short circuits because of getting caught.

Install the inner belt assembly.
Tightening torque:

Front seat belt: Refer to , FRONT SEAT BELT , COMPONENT, General Description.
Locate the seat belt harness and retain it with a harness clip.

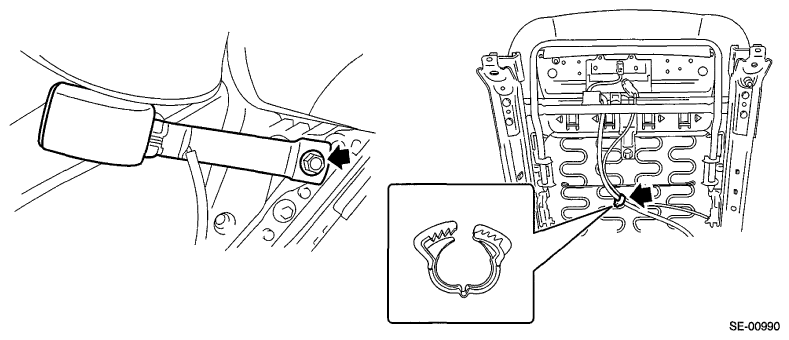

Fig 1: Locating Seat Belt Harness And Inner Belt Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the seat assembly to the body.
CAUTION:
- The seat mounting bolts differ between the front mounting points and the rear mounting points. Make sure that you are using correct bolts at correct positions.
- Tighten the slide rail installing bolt gradually in several steps to the specified torque in the order as shown in the figure.

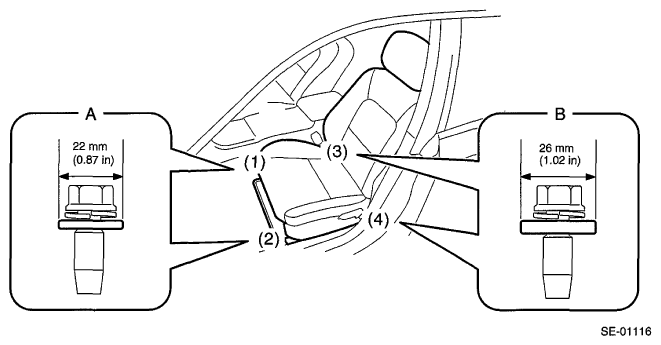

Fig 2: Installing Seat Assembly To Body
Courtesy of SUBARU OF AMERICA, INC.
- Front (bolt A): Washer diameter 22 mm (0.87 in)
- Rear (bolt B): Washer diameter 26 mm (1.02 in)
Tightening torque:

Front seat assembly: 53 N.m (5.4 kgf-m, 39.1 ft-lb)
Check that no harness is caught by sliding the seat back and forth.
