Steering Gearbox

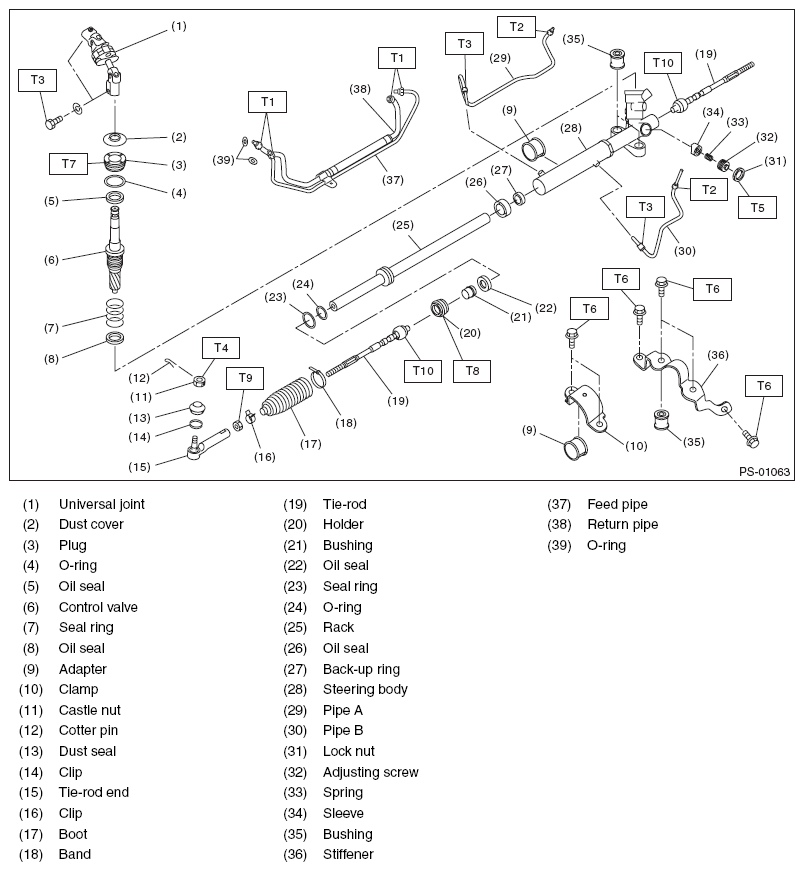

Fig 1: Exploded View Of Steering Gearbox

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 20 (2.04, 14.8)

T3: 24 (2.45, 17.7)

T4: 27 (2.75, 19.9)

T5: 39 (3.98, 28.8)

T6: 60 (6.12, 44.3)

T7: 64 (6.53, 47.2)

T8: 75 (7.65, 55.3)

T9: 85 (8.67, 62.7)

T10: 90 (9.18, 66.4)
