AWD Warning Light Display: Operation

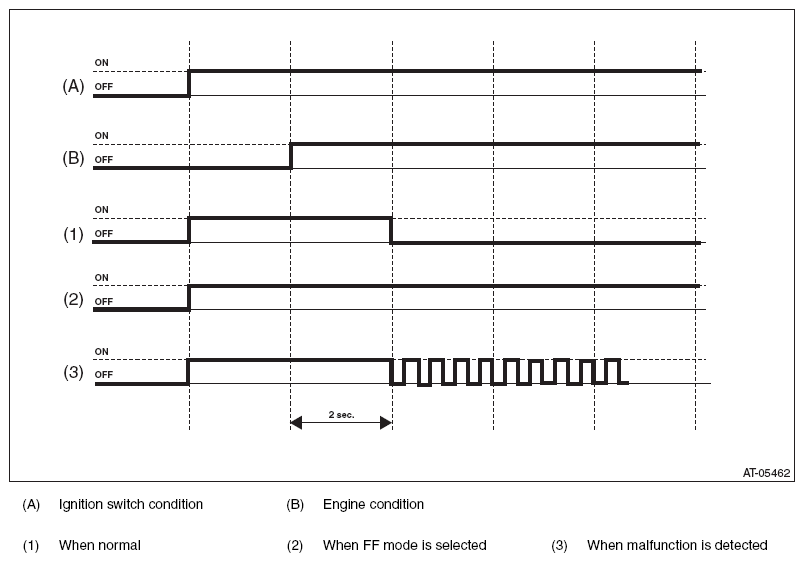

AWD light illuminates or blinks, when the AWD is in special control condition and AWD has malfunction.
- When normal
AWD light always illuminates when the ignition switch is ON (engine OFF). Light goes off after two seconds from engine ON.
- When FF mode is selected
AWD light illuminates, when the AWD ON/OFF switching function is "FF mode" with engine ON.
- When malfunction is detected
AWD light blinks at 2 Hz when any of following malfunctions are detected with engine ON.
- When tire with different diameter is installed, or air pressure of any of four wheels is excessively low
- When "Rear differential inspection mode" is judged as NG Refer to REAR DIFFERENTIAL INSPECTION MODE
.
If the AWD light does not illuminate, or illumination patterns are not as above, check the AWD light circuit. Refer to , INSPECTION , AWD Warning Light Display.
