Continuously Variable Transmission Diagnostics: Electrical Component Location: Location: Sensor

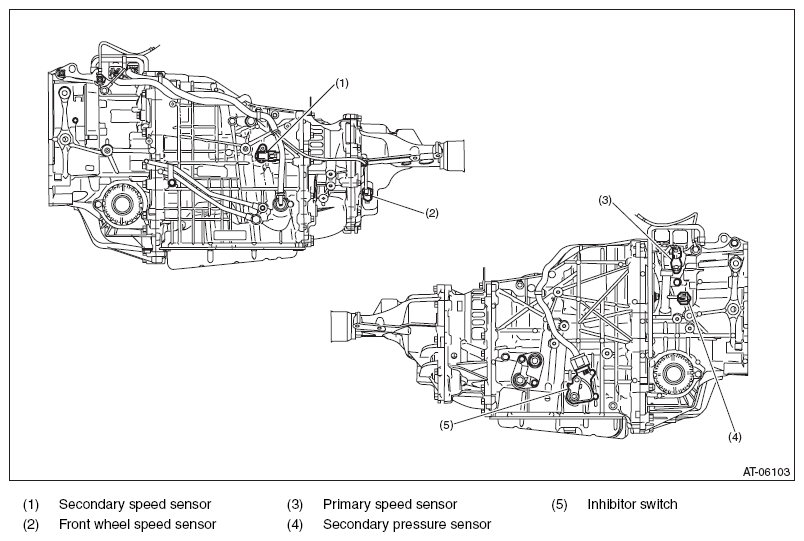

Fig 1: Identifying Sensor Components Location
G07913748Courtesy of SUBARU OF AMERICA, INC.
